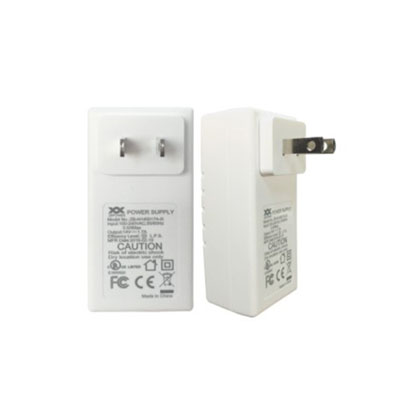

ZB-HXXXYYYZ-R/ R系列
24W Wall-mount type power supply
| 技术参数 Technical Parameters | |
| 输入电压 Input Voltage Rate | 100-240VAC 50/60Hz 0.6A Max |
| 输入端 Input Terminal | UL/BS/SAA/EU/CCC/PSE/KR |
| 输出电压 Output Voltage Range | 3.3V-24V |
| 输出电流 Output Current Range | 0.1A-3A |
| 最大功率 Maximum Power | 24W |
| 特性 Features | |
| 六级能效 | Energy Efficiency Level VI |
| 空载时损耗低于0.1W | No-Load Power Consumption < 0.1W |
| OVP/OCP/SCP/CEC/ERP/RoHS/REACH | |
| MTBF: 50,000 hours | |
| 安规认证 Safety Certificates | 主要应用 Main Applications |
| FCC/SAA/CE/CB | Home Electronics/Office Equipments |
| EN60335 EN60950 | Telecom&Networking/Security&protection |
| UL60950 | Electronic Tools, etc. |
